Green, grey, black, blue, red, yellow and orange – using Euroclamp coloured terminal blocks radically reduces the possibility of incorrect connecting of the cables.
It is quite common that multi-conductor cables have the insulation of each conductor in different colour. The connecting of such a cable is much easier and faster. But, it is quite common that the outer jacket of these cables is only black or grey. And it could also be advantageous to easily and quickly identify from where, respectively, where the cable leads.. Especially in complex devices with many inputs and outputs.

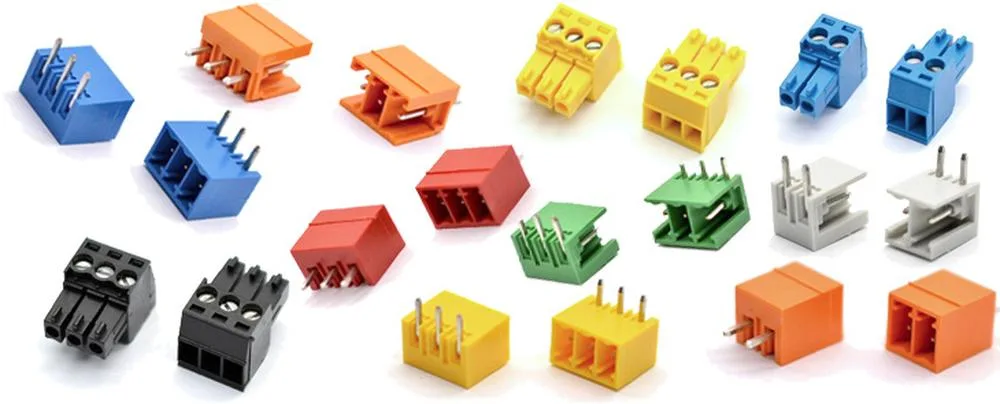

That is why we have decided to update our offer of coloured plug-in connectors from Euroclamp in pitch of 3,5mm. Besides standard, green terminal blocks, you have an easy access to grey, black, blue, red, yellow and orange ones. The work with these coloured terminal blocks can be easily handled even by the beginners.

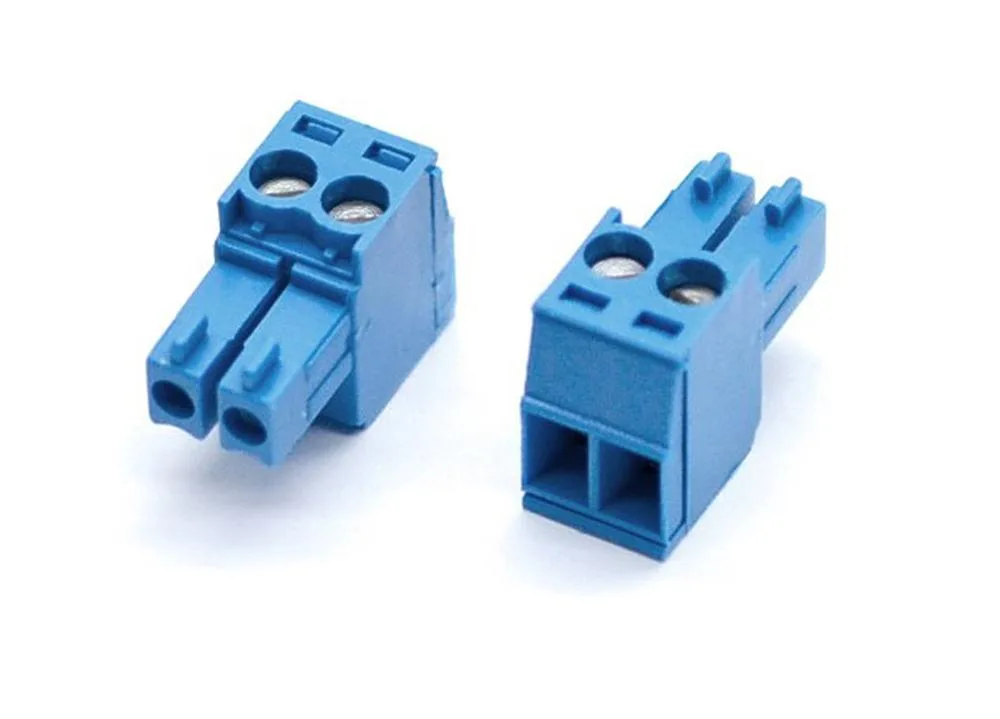

From production of Euroclamp we have chosen plug-in connectors (terminal blocks) SHxx-3,5-COLOUR Series. We keep 2 and 3-pole versions in our stock.
And as counterparts to the PCB, we keep all available versions:
? Vertical mating parts, closed, can be placed anywhere on PCB – Series PVxx-3,5-V-P-COLOUR
? Vertical mating parts, open, stackable to multicolour blocks, can be placed anywhere on PCB – Series PVxx-3,5-V-COLOUR
? Horizontal mating parts, closed, can be placed at the edge of PCB – Series PVxx-3,5-H-P-COLOUR
? Horizontal mating parts, closed, can be placed at the edge of PCB – Series PVxx-3,5-H-COLOUR
For more information about EUROCLAMP products, please contact us at sales@soselectronic.com
Advantages/Features
– Pitch: 3,5mm (available in 3,81mm upon request)
– Max. Voltage: 160V
– Max. Current: 8A
– Max. Wire cross section: 1,5mm?
– Temperature range: -40?C to +130?C
– Colours: Green RAL 6032, Grey RAL 7035, Black RAL 9005, Blue RAL 5012, Red RAL 3031, Yellow RAL 1016, Orange RAL 2008
