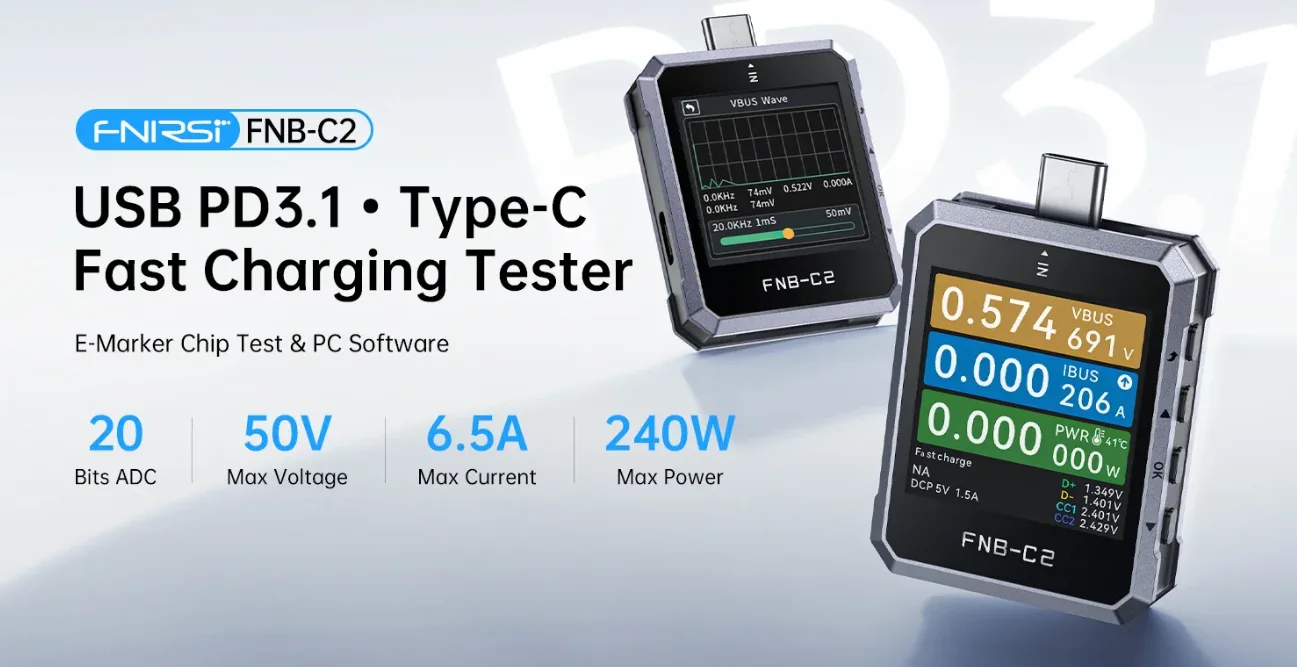

I received an email about a new product from FNIRSI. A new USB tester called FNB-C2. And it looks really good.
It supports the PD3.1 standard, can measure up to 240W (20V/6.5A), can read e-Marker USB-C cables, and can also emulate them!
I have written about FNIRSI products often here. Initially, I was somewhat disappointed; however, the products from the last two reviews pleasantly surprised me.
We will see how the FNB-C2 performs; it promises a lot, and with a price under a thousand crowns, it is indeed an interesting product.
I tested one USB tester, the FNAC-28, and it didn’t turn out the best. On the other hand, it is the cheapest option among their testers, but USB-PD support is a must for me.
What will this one be like? It promises a lot.
Allegedly, it has a 20-bit resolution ADC converter for measuring voltage and current. The voltage measurement range is from 4 to 50V with a resolution of 0.000001V and an accuracy of ±0.2‰ + 2 digits, while the current measurement range is from 0 to 6.5A with a resolution of 0.000001A and an accuracy of ±0.5‰ + 2 digits, allowing it to reliably measure output power up to 240W.
Author’s consideration: If the tester has a resolution of 0.000001V, i.e., 1uV, and an accuracy of ±0.2‰, i.e., 0.02% + 2 digits (considering the measured value). Then the measurement inaccuracy (for 5V) could be ±1.002mV.
In addition to USB-PD 3.1 EPR, it also supports other fast charging standards – UFCS, QC2.0/3.0/4/5, Huawei FCP/SCP, OPPO VOOC/SVOOC, and VIVO VFCP.
The FNB-C2 can identify the e-Marker in a USB-C cable. You can easily verify whether the cable can actually handle the promised power. The USB tester can behave like a cable with or without an e-Marker chip.

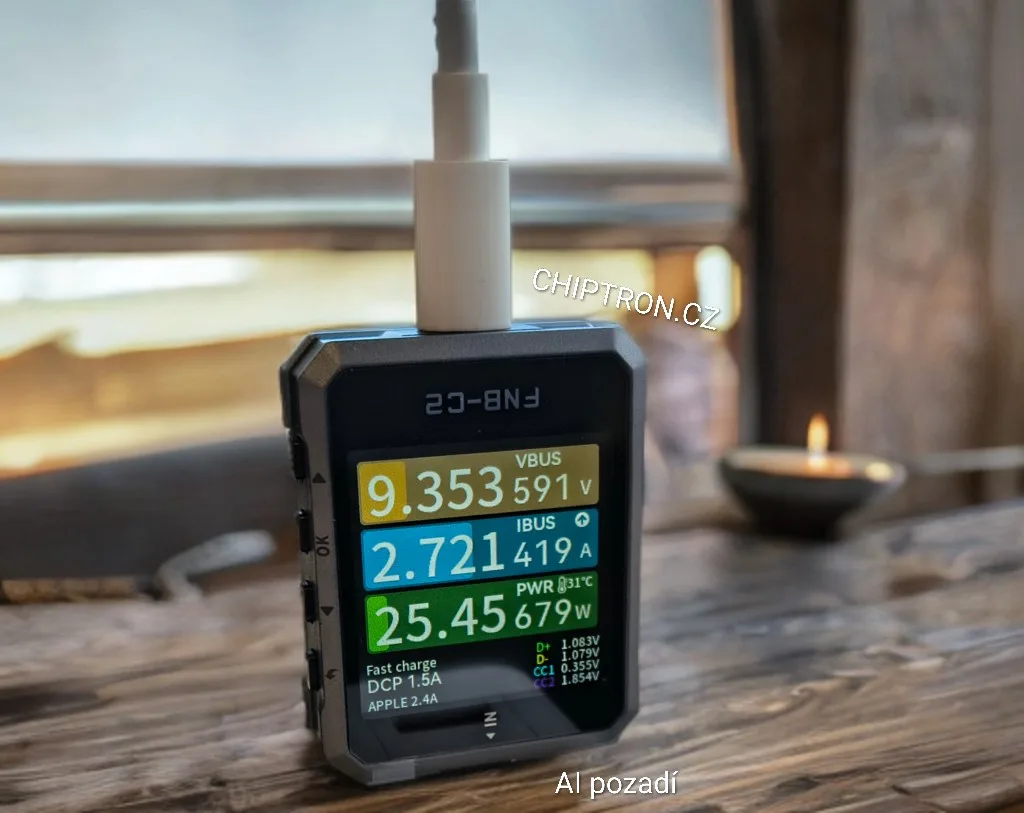

There is also the option for real-time monitoring of both temperature and voltage, current, and thus power.
I have already ordered the tester. Delivery is within 14 days, and it is currently on its way via Zásilkovna.
You can find the product page at https://www.fnirsi.com/products/fnb-c2
The price is 851 CZK excluding VAT and shipping, making it cheaper than its predecessor FNB58 (1288 CZK).

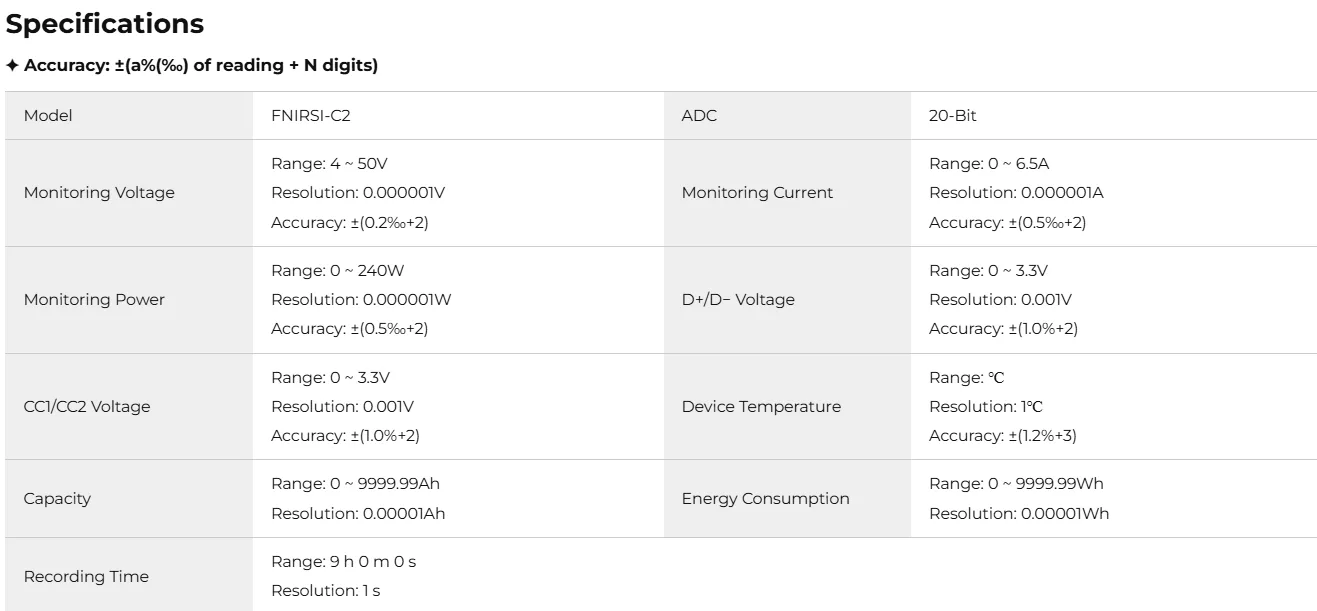

Specifications
