UPDATED: Banana Pi NB-IoT development board – use like arduino

News2017-05-10
Auhtor: Petr Šrámek

Sinovoip, well-known like single-board computer manufacturer of Banana Pi, released other pictures of IoT module which uses NB-IoT (NarrowBand Internet of Things). This IoT network uses Vodafone in trial version in Czech Republic (2017).
NB-IoT is standard Low Power Wide Area Network (LPWAN) used for communication of IoT devices(Internet of Things).

BPI-BC95 NB-IOT contains STM8L152 – low power MCU. The upload of code is through SWD.

NB-IOT also contains temperature/humidity sensor (Si7021) and sensor of pressure (BMP085).

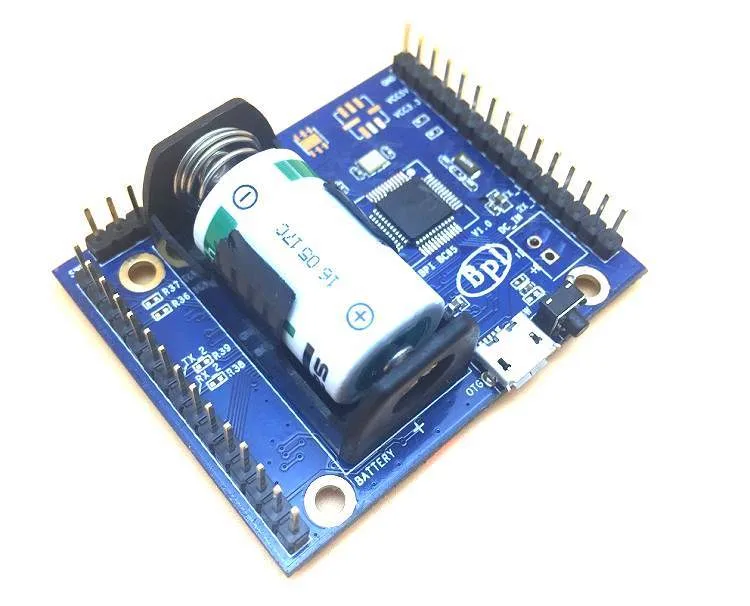

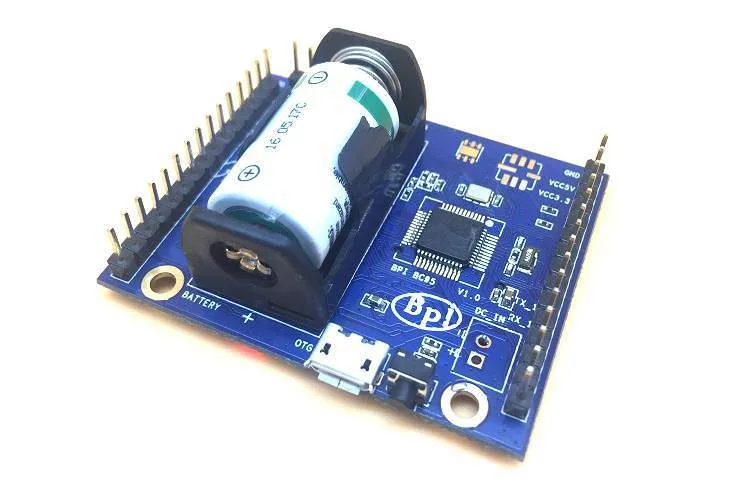

On the board are microUSB, RGB LED, connector for external antenna and connector for battery.

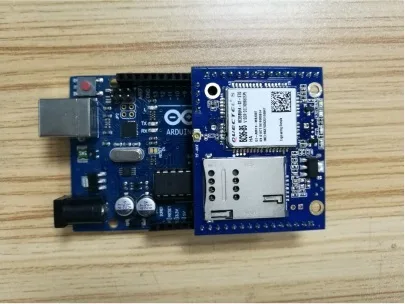

The dimension of board is (53 X 43 mm) and connectors can be fit to Arduino Uno Rev.3. connectors.

The power consumption is lower than 20uA.

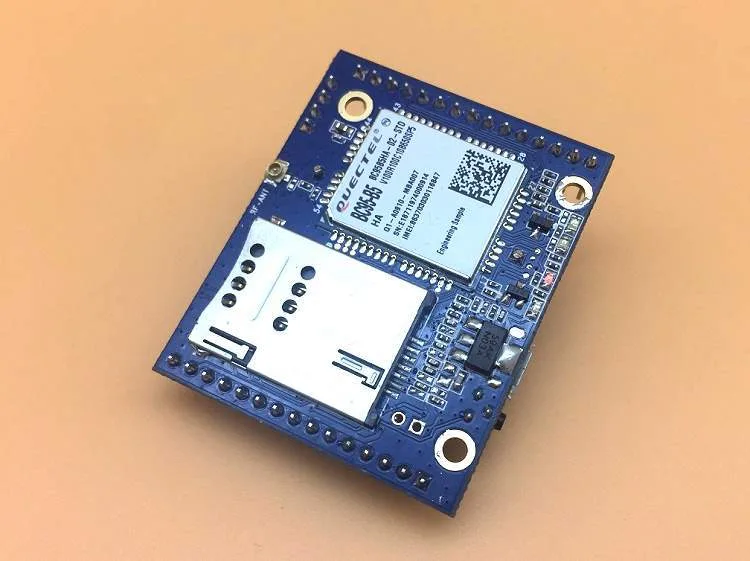

The IoT module uses IoT chip by Quectel BC95-SL.
Specifications Quectel BC95:

Power supply: 3 – 4.2V

Bitrate: up to 100kb/s

Band: 900MHz (B8)

Peripherals: SIM, 2x UART, ADC, antenna

http://forum.banana-pi.org/t/bpi-nb-iot-development-board-also-can-use-with-arduino/3026

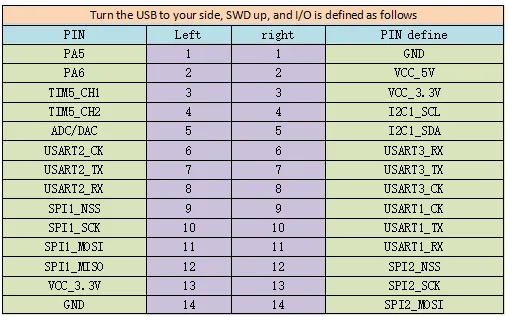

Pinout:
