Wemos with ESP32 – LoLin32

News2017-04-21
Auhtor: Petr Šrámek

Popular Wemos D1 with WiFi chip ESP8266 has other member of Wemos family, now with ESP32.

On aliexpress is available a new development board with ESP32 $6.90 + shipping by Wemos. LoLin32.

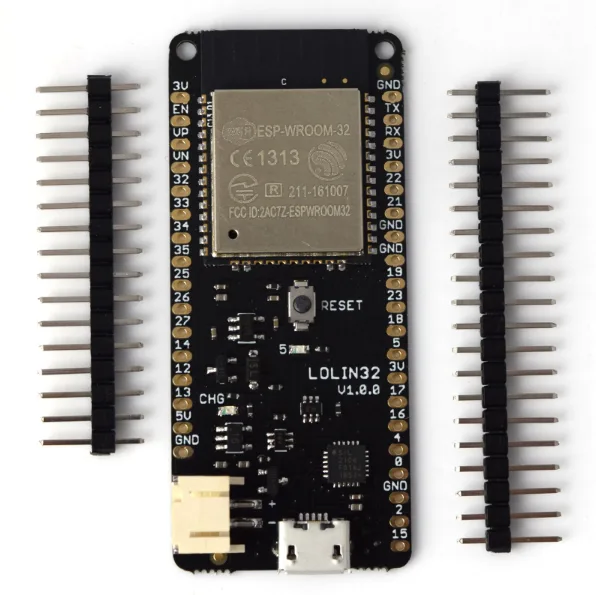

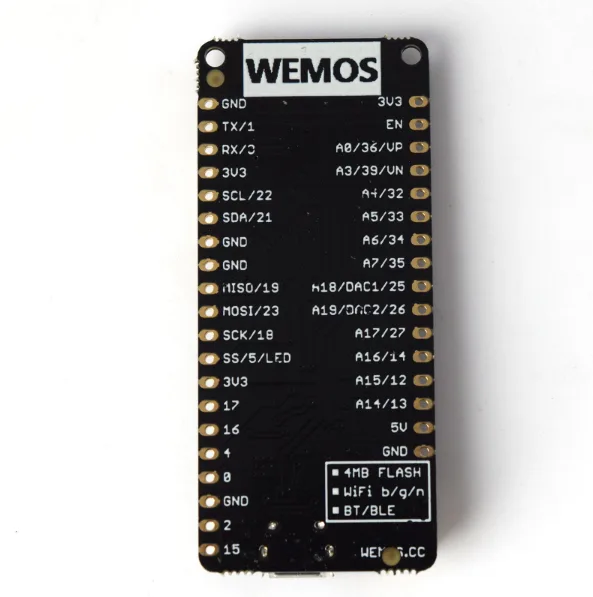

LoLin32, development board including ESP32, microUSB, reset button and LED. The board has integrated battery charger for Li-Ion.

Microcontroller: ESP-32

Operating Voltage: 3.3V

Digital I/O Pins: 26

Analog Input Pins: 12

Clock Speed(Max): 240Mhz

Flash: 4M bytes

Length: 5.8mm

Width: 2.54mm

Weight: 5.8g

LoLin32 wiki website https://wiki.wemos.cc/products:lolin32:lolin32

Link to LoLin32 https://www.aliexpress.com/store/product/WEMOS-LOLIN32-V1-0-0-wifi-bluetooth-board-based-ESP-32-4MB-FLASH/1331105_32808551116.html

Originaly shared http://www.cnx-software.com/2017/04/21/6-90-wemos-lolin32-esp32-development-board-comes-with-4mb-flash-lithium-battery-support/


Share the article:
Show your
Maker soul!
Buy a T-Shirt
Coffee for Chiptron
Give a boost to the next article

Related Articles

ESP32 (REV1) board by WEMOS – LoLin32 Lite

News2017-09-14

WEMOS released a new development board with ESP32 called LoLin32 with price $4.9 (+ shipping, $2.59 in my case). WEMOS has released LoLin32 a few weeks ago. Here is link to the news.. The Lite version of board is smaller,…

ESP32 and Arduino IDE

Articles2017-05-07

Finally, I can write you a short tutorial how to play with ESP32 (more powerful than ESP8266). On the internet is a lot of tutorials how to do it, but this is a little bit different. I don’t have LoLin32,…

Useful ESP32 modul for $8 and shields for that

News2017-06-18

A new ESP32 module is available on aliexpress. MH-ET LIVE D1 mini ESP32. Module for $8 could be interesting alternative to other ESP32 modules like TTgo UNO ESP32, SunDuino or LoLin32 by Wemos. You can see USB-UART bridge for uploading…

ESP32 and battery holder, TTgo Uno ESP32

News2017-05-23

With ESP32 we can expect a lot of interesting board for wireless connections – WiFi and Bluetooth. We expect that the Wemos name on the board is maybe abuse of name. There are two of them. The first dev board…

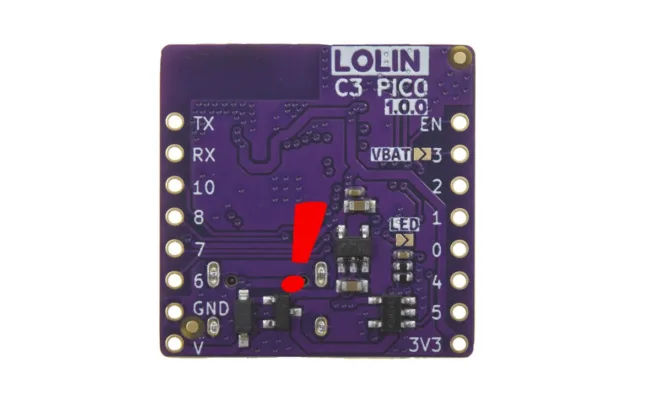

Same old song. Lolin designed a great board as intended for battery power and killed the whole design with one component
