Adapter for STM32 programmators and development boards

News2018-09-18
Auhtor: Petr Šrámek

The official development boards (Nucleo) with STM32 microcontrollers contain standard programming connector – SWD.

But, we can buy a lot of different development boards with STM32 and also programmers, mostly from China.

The reconnecting between boards and programmers solves this adapter.

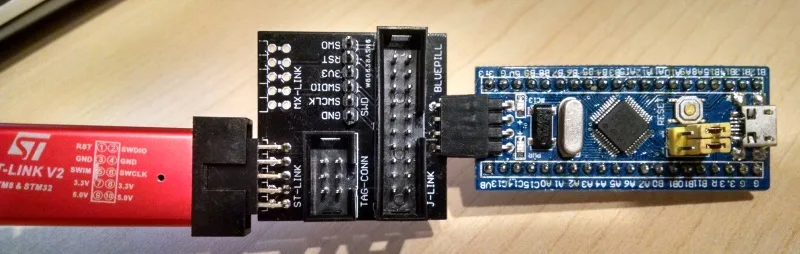

The adapter supports a few programmators – original ST-Link by STMicroelectronics, ST-Link which is available on Nucleo development boards, chinese programmers like ST-Link V2 and MX-Link and popular J-Link by firmy Segger.

The difference between chinese ST-Link V2 and MX-Link is only one – SWO and GND are switched.

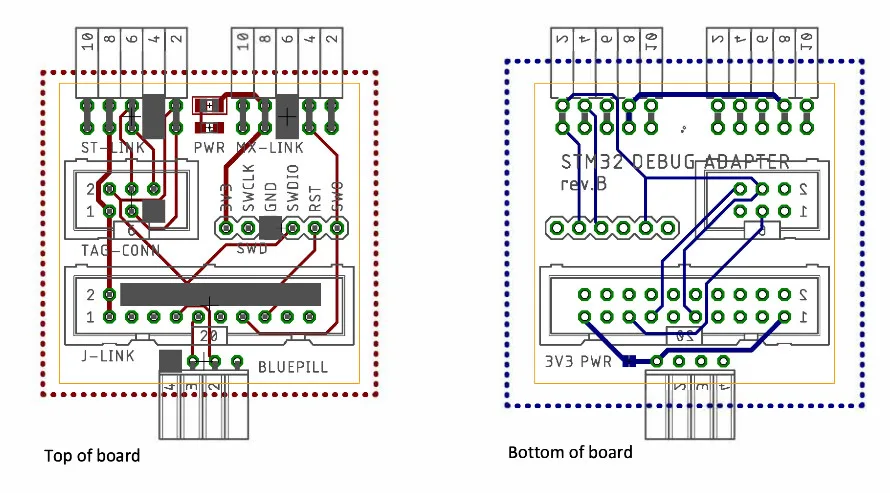

The programming adapter for STM32 development board and programmers is really good described on github. Thumb up for developer.

Whole project is available on https://github.com/fronders/stm32-debug-adapter
