NanoPi NEO Plus2: quad-core, 1 GB RAM, 8 GB eMMC, Gbps ethernet

News2017-07-03
Auhtor: Petr Šrámek

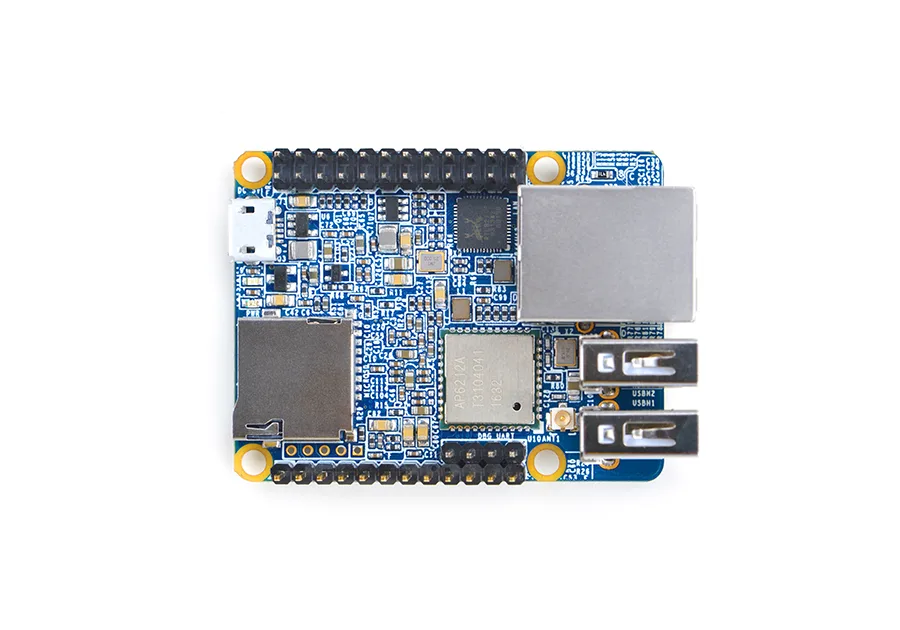

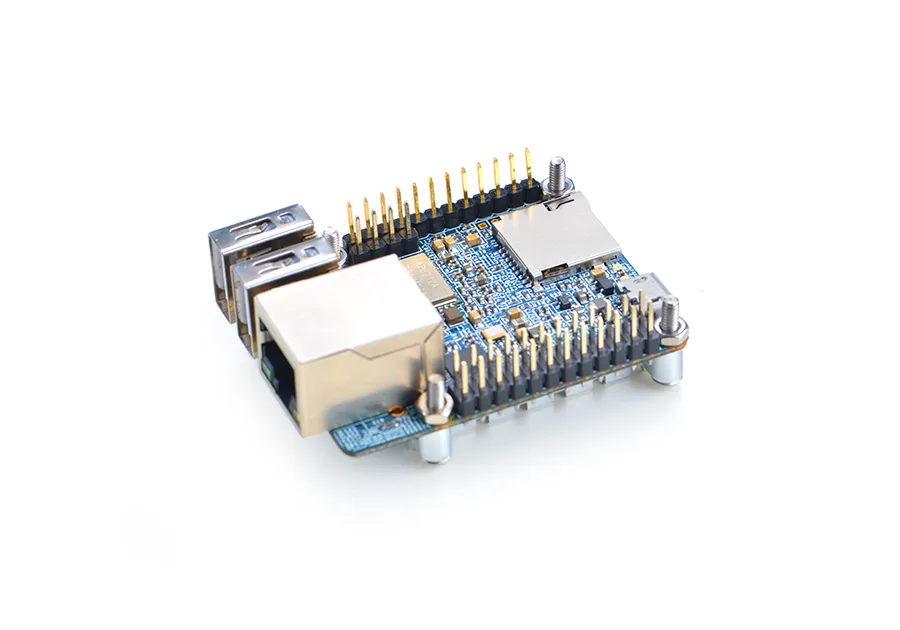

The latest single-board computer by Friendlyelec – NanoPi NEO Plus2.

The powerful and small single-board computer with quad-core, eMMC on-board as well as AP6212 –WiFi (802.11 b/g/n) and Bluetooth (4.0 dual mode) for $24.99 + shipping.

The board also contains RJ45 connector for 1Gbps ethernet connection.

The NanoPi NEO Plus2 also contains:

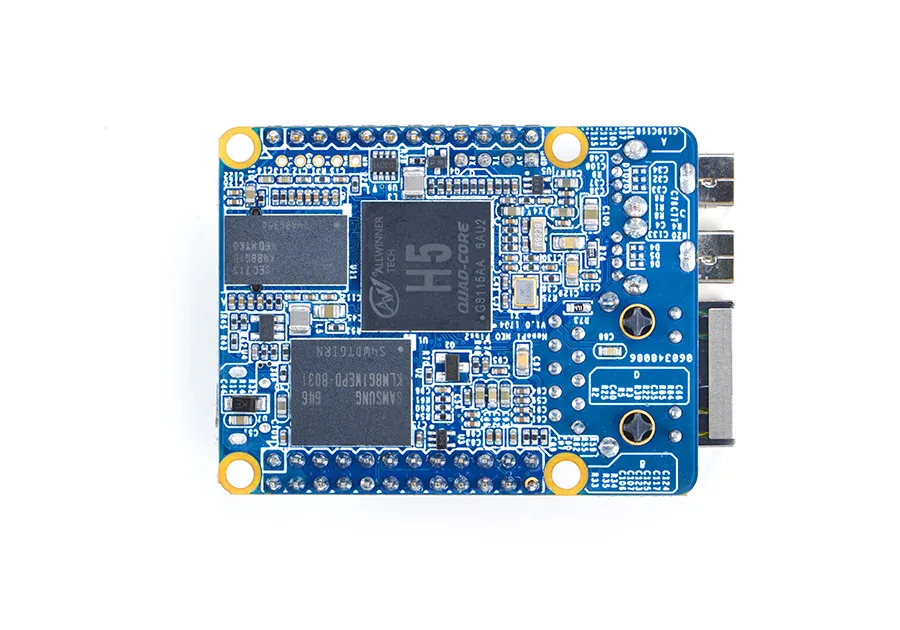

Allwinner H5 proccesor – 64bit quad-core (Cortex A53) + Mali450

1 GB DDR3 RAM

eMMC 8GB

microSD card slot

2x USB 2.0 + 2x USB 2.0 available on pin header

Serial Debug Port

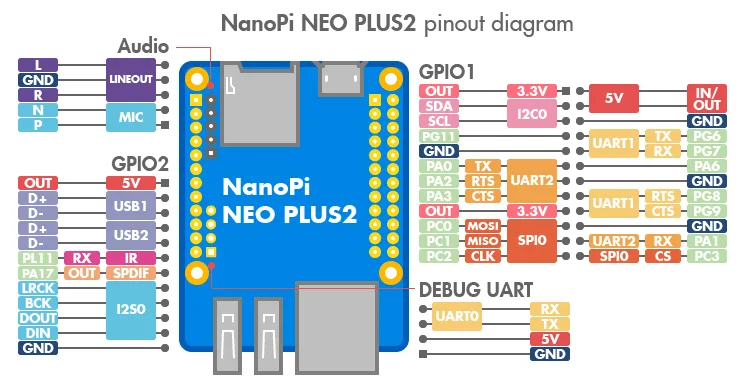

24-pin header with periperals like UART, I2C, SPI and GPIOs

12-pin header with 2x USB, IR pin, I2S, and GPIOs

5-pin audio header with 2.00mm pitch (microphone and LINE out)

The dimension of board is 40 x 52 mm and it support a lot of operating systems.

Link: http://www.friendlyarm.com/index.php?route=product/product&product_id=196
