Particle Mesh – WiFi, LTE, BLE, Mesh

Particle.io which is known thanks to development board called Particle Photon released a new family of board called Particle Mesh.

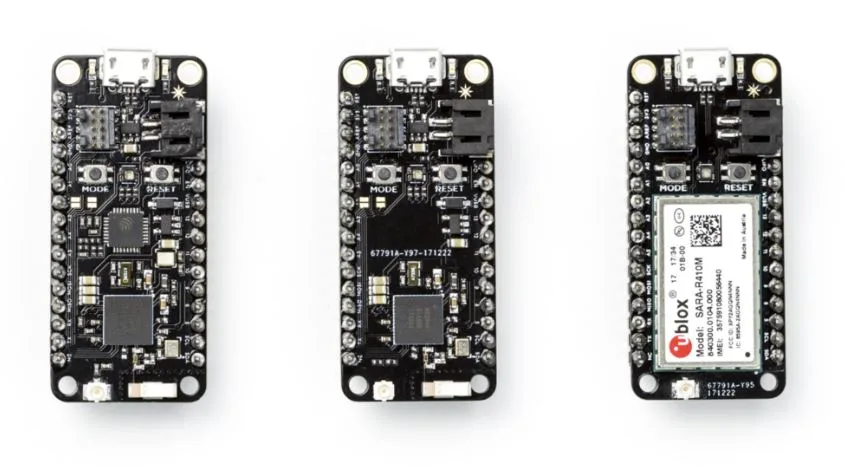

The new boards are called Xenon which combines Mesh a BLE. Other board is Boronwhich includes LTE + BLE+ Mesh. And the last is Argon which has interfaces like WiFi + BLE + Mesh.

If you buy some board until 14th February 2018 3:00 pm (CET), you get a free shipping. The shipping is planned to July of 2018.

All board contains nRF52840 microcontroller:

ARM Cortex-M4F 32-bit processor @ 64MHz 1MB flash, 256kB RAM

IEEE 802.15.4 (supports Thread?)

Bluetooth 5

ARM TrustZone CryptoCell-310 Cryptographic and security module

You the board also includes

2MB FLASH pam??

20 GPIO

JTAG a

RGB status LED

Argon (15 USD)

Espressif ESP32-S0WD

2.4G Wi-Fi co-processor

802.11 b/g/n support

2.4 GHz up to 150 Mbps

Integrated onboard 2.4GHz antenna

Boron (29 USD)

u-blox SARA R410 LTE modem

LTE CAT M1/ NB1 module with global hardware support

LTE M1 SIM support via Particle MVNO (US/Mexico only)

Dual SIM support (Nano 4FF and MFF2)

Xenon (9 USD)

On-board 2.4GHz mesh antenna

U.FL connector for external antenna

More info and specs you find on https://www.particle.io/mesh


Share the article:
Show your
Maker soul!
Buy a T-Shirt
Coffee for Chiptron
Give a boost to the next article

Related Articles

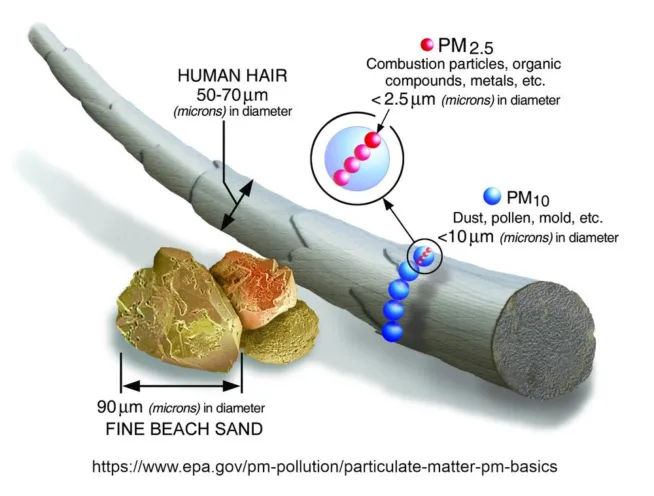

Sensirion’s SPS30 particulate matter (PM) sensor uses innovative technology that keeps the dust away from all sensitive parts and prevents its accumulation. This technology, along with high-quality and long-lasting components, enables accurate measurements for more than eight years while operating…
