Mounting of a small graphic display EA OLEDS102 which is mounted only by soldering into PCB or plugging into a socket is not only fast and reliable but also cheap.
Are you also dissuaded by relatively laborious mounting of common display modules by screws or tapes/glue? Solution is a well-known series EA DOG. In addition, company Electronic Assembly also introduced 2 types with the same mechanical advantages but in OLED technology.
You are probably familiar with the OLEDL128-6GGA module from our recent article and newly it has a new sibling.

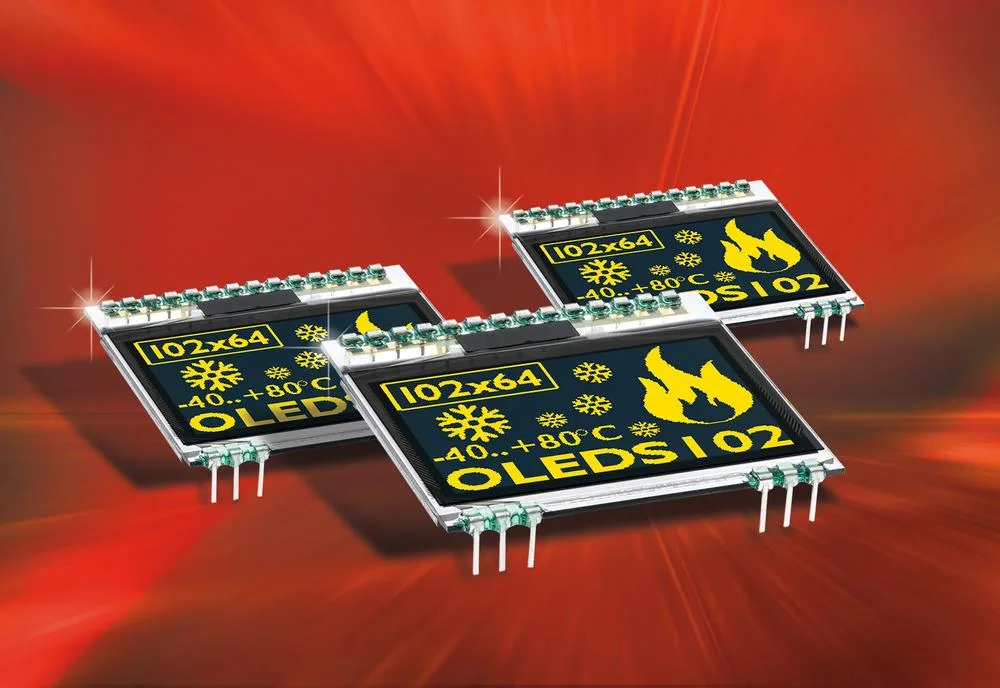

It is the OLEDS102-6LGA which, as a younger member, is naturally also smaller : )
It is only 2.4 mm thick. Resolution of 102x64pix enables to display 8 rows with 17 characters or 4 rows with 12 characters of a bigger format. Control is handled by SSD1306B controller and it enables to control the display via SPI or I?C interface. The content is yellow and as we know it from other OLED displays, the black is really ?black?.
OLEDS102-6LGA maintains mechanical compatibility with EA DOGS series. Pins usage is however naturally different.
An alternative in a form of an OLED display brings another benefits, mainly:
– great contrast of approx. 2000:1
– extreme viewing angles on the border of physics laws
– reliable operation and fast response (microseconds) even in frosts
Although OLED displays don?t technically belong to displays with extremely low power consumption, they still have advantages in comparison to standard LCD displays with backlight, because only pixels which are ON consume power. In case of standby operation of your device when only a few characters/ icons will be displayed, overall power consumption of the display is also relatively very low.
Displaying of the new OLED EA OLEDL128-6GGA can be tested using the EA USB9781-USB testing board and the EA startoled.exe software (free).
If you are interested in other Electronic Assembly products, or you need more info, please contact us at sales@soselectronic.com
Advantages/Features
– only 2.4mm thick
– simple mounting by soldering of pins or plugging into a socket
– no screws or glue necessary
– fast response time – 10 us
– wide operating temperatures range -40?+80?C
– lifetime of at least 50 000 hrs
– SPI + I2C interface
