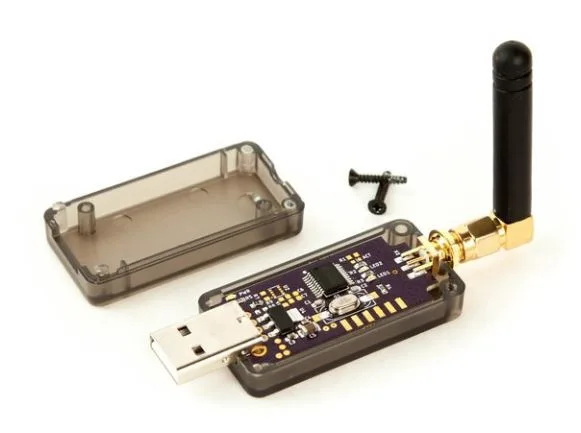

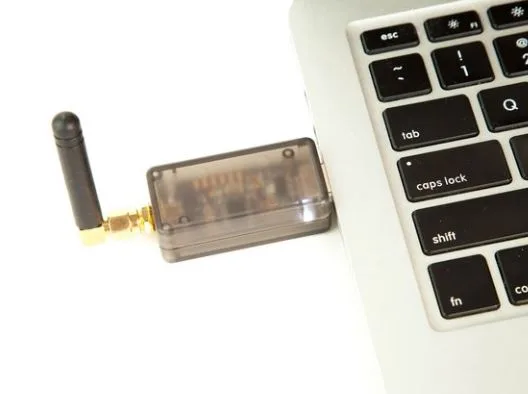

Crowdfunding campaign for LoRa Stik is available on Crowdsupply website. The LoRa Stik is interface for connecting of your devices to Internet of Things. The IoT device contains USB connector so you can esaily connect your laptop, RaspberryPi, OrangePi or BananaPi to IoT and send your needed data.
The price starts from 39 USD and the board contains IoT module RN2903/R2483 (915/868MHz) by Microchip and two programable LEDs. Whole project (examples and PCB) is available on github.
Specification:
– Connectivity: USB 2.0
– Power Consumption: 140 ma typical TX, 20 ma idle (with power LED)
– Dimensions: 80 mm x 25 mm x 12 mm (without antenna)
– Receiver Sensitivity: down to -146dBm
– TX Power: adjustable up to +18.5 dBm
– Range: up to 15 km coverage in suburban and up to 5 km coverage in urban areas
You can choose between two version of board – 915 and 868 MHz, so be careful what frequency is supported in your country.
The price is 39 USD and shipping outside of USA is only 10 USD.
Website of campaign: https://www.crowdsupply.com/third-venture/lora-stik
Github of project: https://github.com/lolsborn/lora-stik
