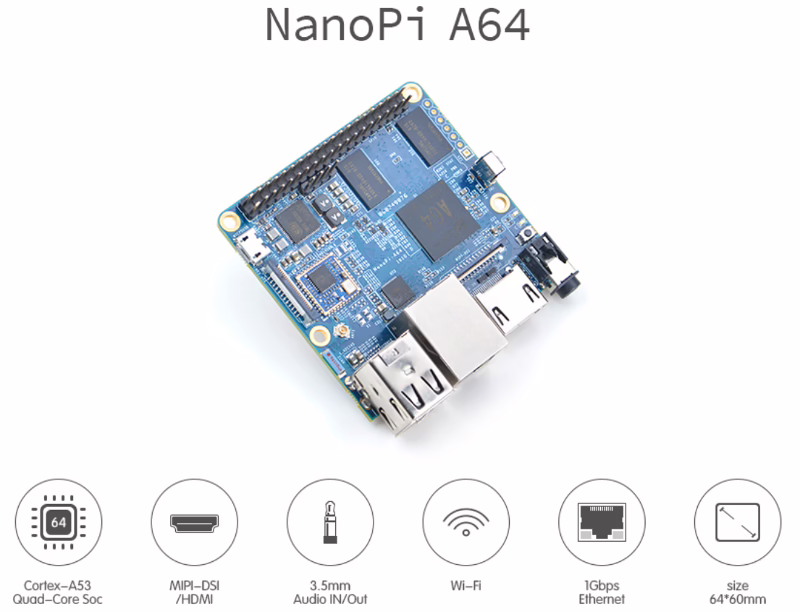

NanoPi released news of a new single-board computer which is called NanoPi A64.
The CPU is used Allwinner A64 quad-core Cortex-A53 up to 1.15GHz with Mali400MP2 GPU which supports OpenGL ES2.0 and OpenGV1.1.
The amount of RAM is 1 GB DDR3 and the storage is micro SD slot which is standard for similar single-board computers.
Internet connections is supported by Gigabit ethernet RTL8211E and WiFi module 802.11b/g/n.
The board contains 2x USB2.0 type A and serial debug port which is realized by 4pin header.
The power input is used usual micro USB connector.
Video output is 1.4 HDMI Type A and camera connector is 24pin FPC.
On the board you can find other peripherals like IR reciever, 40-pin header (GPIO, SPI, I2C, UART, PWM and more), power button, power LED, System LED and audio Out/MIC.
The board si designed on six layers PCB with dimension 64×60 mm.
The power supply is recommended 5V/2A.
Supported OS is Ubuntu-Core with QtE and Ubuntu-MATE.
The price is $25 + shipping.
