The Xunlong company released other single-board computer which is called OrangePi RK3399.
The board is called RK3399 because the processor which is included is RK3399 by Rockchip.
The RK3399 combines two types of processors 64 bit Dual Core ARM A72 and Quad Core ARM A53 processor up to 2 GHz.
The processor also includes Mali-T860 quad core GPU.

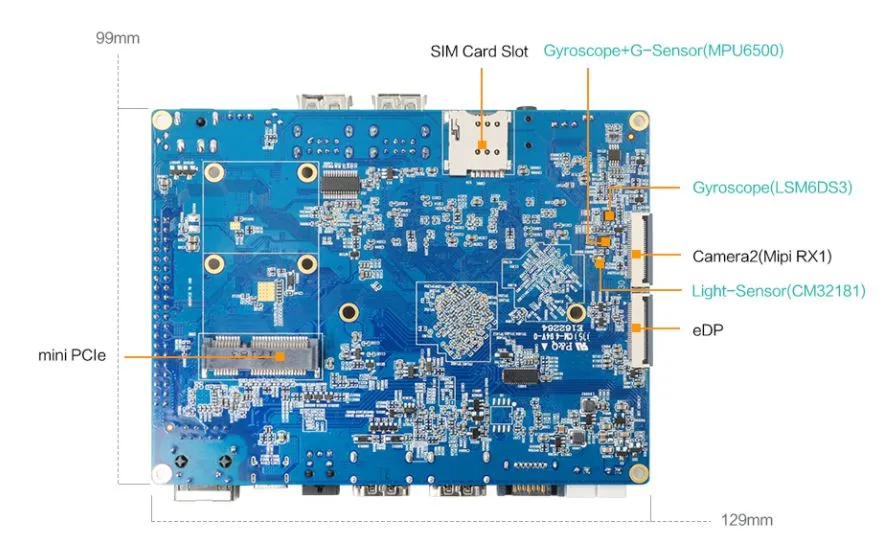

The amount of RAM is 2GB DDR3. The storage is 16 GB high speed eMMC memory, microSD card slot, miniPCIE for e.g. LTE module and also mSATA interface.
The board has gigabit ethernet interface (RTL8211E), 2.4/5GHz WiFi, 802.11a/b/g/n/ac, (AP6356S) with 2×2 MIMO and Bluetooth Low Energy 4.1.
The OrangePi RK 3399 contains a few display outputs – HDMI 2.0, DP 1.2 (Display Port), 2x MIPI, 1x eDP 1.3 and also 1x HDMI IN, which is used like display input.
The sound output is HDMI, DP, Jack 3.5″, SPDIF and I2S. The microphone is on board.
Orange Pi RK3399 inlcudes two camera inputs – MIPI-CSI,
There are sensors like gyroscope, HALL sensor, light intensity sensor and compass.
Another interesting peripheral and interface are SIM card slot, 1x mini PCIe, 4x USB 2.0, 1x USB 3.0 Type-C, IR receiver and 40 pins header.
The board can be powered by external power supply 5V/2A or 12V/2A (two pin connectors), DC input 12V/2A, USB 3.0 Type-C 5V/3A or battery input 7.4V.
The OS which are available for this board are Debian 9.0 and Android 6.0.
The dimension of board is 99×129 mm and weight 99g.
You can buy the OrangePi RK3399 on aliexpress https://www.aliexpress.com/item/Orange-Pi-RK3399-2GB-DDR3-16GB-EMMC-Cortex-A72-Type-C-Double-CSI-interface-Development-Board/32850569302.html
Originally shared https://www.cnx-software.com/
