OrangePi One Plus (Allwinner H6 proccesor, Gbps ethernet)

News2017-12-27
Author: Petr Šrámek

Armbian released some info and pictures of prepared single-board computer called Orange Pi One Plus.

This single-board computer contains Allwinner H6 processor.

The H6 processor is used in Orange Pi 3 Plus single-board computer.

Allwinner H6:

Quad-core ARM Cortex A53

GPU 3D Mali-T720 (OpenGL ES3.1/3.0/2.0/1.1, OpenCL 1.1,…)

supports DDR4, DDR3 and DDR3L RAM

contains eMMC 5.0 flash interface, 1x NAND flash interface for MLC, SCL and TLC flash memory, 1x SPI NOR and 1x SD card 2.0

Video decoder supports H265/HEVC, 4K@60fps, up to 6Kx4K@30fps

Other interfaces are 1 Gbit ethernet MAC and 10/100Mbit ethernet with PHY. 1x USB 2.0 OTG, 1x USB 2.0 host, 1x SDIO 3.0

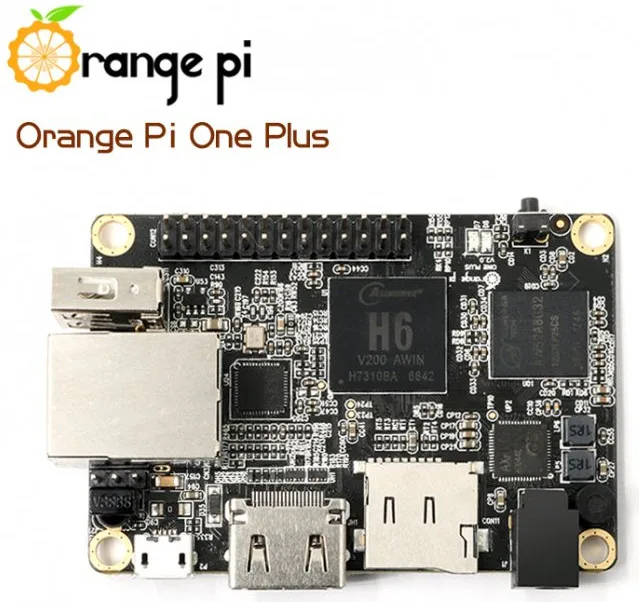

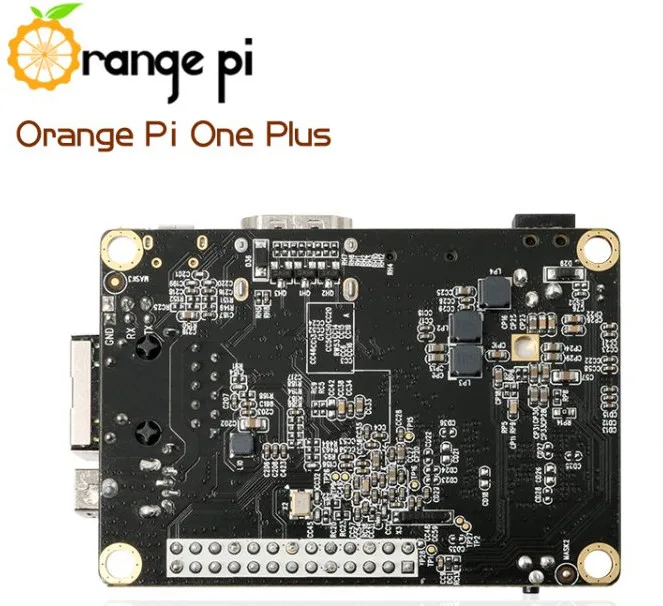

Orange Pi One Plus:

The board includes on ethernet connector for 1Gbps interface, one USB connector with USB 2.0, one micro USB connector, HDMI output. DC connector is used for power-supply.

The board contains 26pin header, the amount of RAM is 1 GB,

The board size is 69x47mm, the weight of board is 50g.

The price of OrangePi One Plus is 19.99 USD + shipping
https://www.aliexpress.com/store/product/Orange-Pi-One-Plus-H6-1GB-Quad-core-64bit-development-board-Support-android7-0-mini-PC/1553371_32848891030.html

Link to armbian forum https://forum.armbian.com/topic/6030-orange-pi-one-plus/
