Build you own IoT gateway with OrangePi and RAK831 module

News2018-07-01
Author: Petr Šrámek

Build your own IoT gateway for your sensors and also you can join to The Things Network, community IoT network. This tutorial describes the using of OrangePi Zero and IoT transceiver RAK831 module.

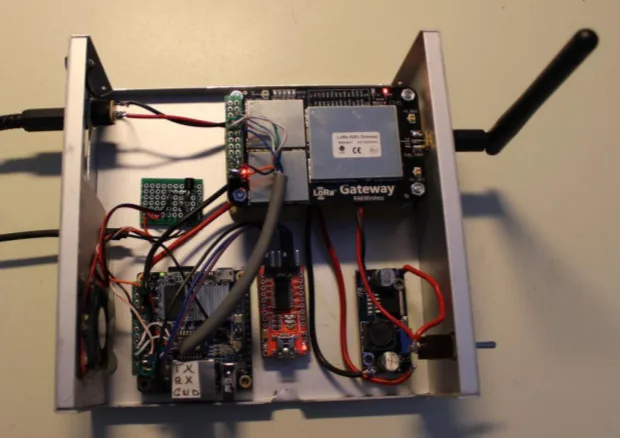

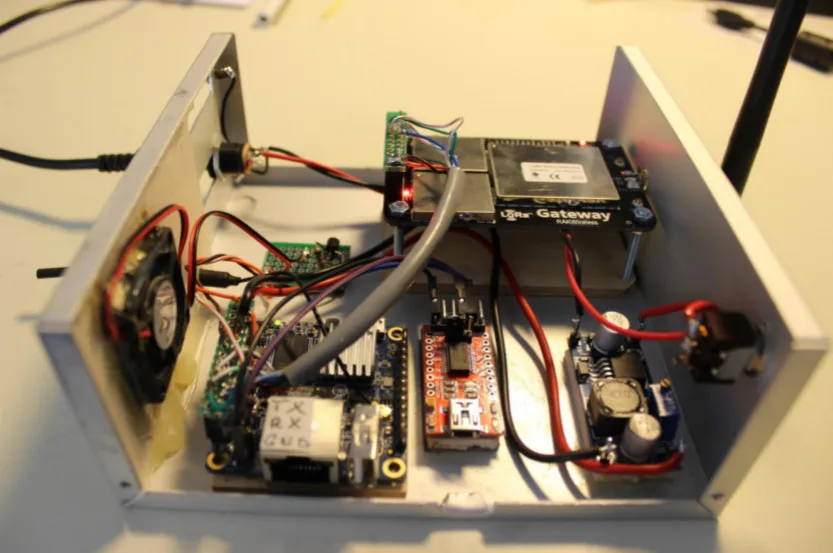

Miroslav Prymek shared success with OrangePi Zero and RAK831 on google plus. He built own gateway and joined to IoT network called The Thing Networks (TTN).

Miroslav used the detailed tutorial by Ed Smallenburg.

In the PDF file (also available in docx) you find:

How to configure OrangePi Zero

What you have to change in armbian operating system

How to set WiFi access

How to enable SPI bus for RAK831 module

and How to edit the configuration file of software

The tutorial is available on: https://github.com/Edzelf/RAK831-LoRa-gateway


Share the article:
Show your
Maker soul!
Buy a T-Shirt
Coffee for Chiptron
Give a boost to the next article

Related Articles

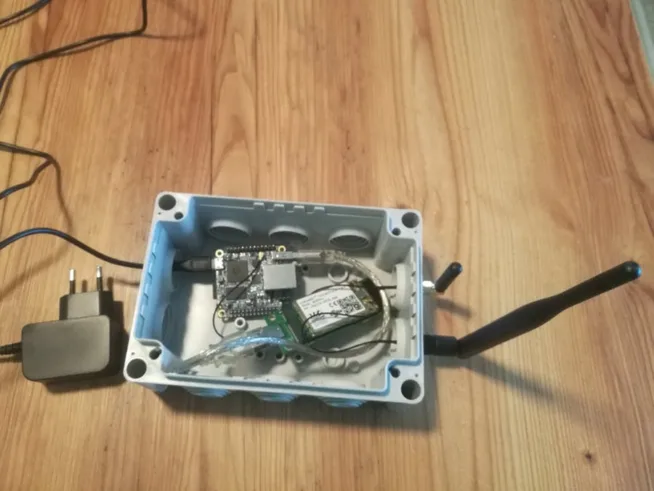

Build IoT Gateway for TTN with OrangePi/RaspberryPi and mPCIe concentrator
