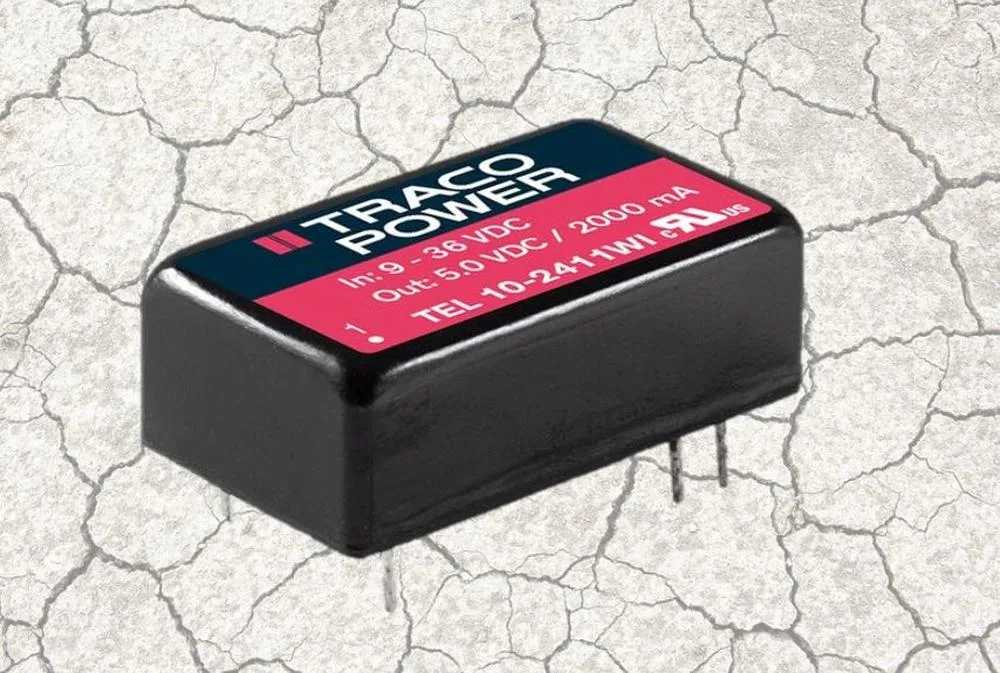

TRACO POWER 10 Watt DC/DC converter for space-limited applications.
The TEL 10WI series is a range of isolated 10 Watt converters coming in an ultra compact DIP-16 metal package. The design purpose of these series was to miniaturize low power DC/DC converters to the limits without sacrificing high efficiency. The TEL 10WI series sets the new standard for power density with 3,83W/cm3.
The TEL 10WI series offer an ultra wide 4:1 input voltage range and feature a high efficiency of up to 86%, which enables an operation temperature of up to +70°C at full load and up to 88°C with 50% load. Two input voltage options are available: 9-36VDC and 18-75VDC. These two ranges cover almost all industrial application requirements.
The converters have an internal input filter to comply with conducted emission EN 55032 / EN 55022 class A. The TEL 10WI Series models are an economical solution for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.
If you are interested in any of Traco Power products, or you need more information, please do not hesitate to contact us at tracopower@soselectronic.com
Main Features:
– Most compact 10 Watt converter in DIP-16 metal casing
– Highest power density of 3.83 W/cm3
– 6-side shielded metal case with insulated base plate
– Ultra wide 4:1 input voltage range
– High efficiency for low thermal loss
– Operating temperature range of -40°C to +88°C
– Built-in EN 55032 class A filter
– Protection against short circuit and overload
– 3 years product warranty
– Dimensions: 23.8×13.7x8mm (0.94×0.54×0.31inch)
