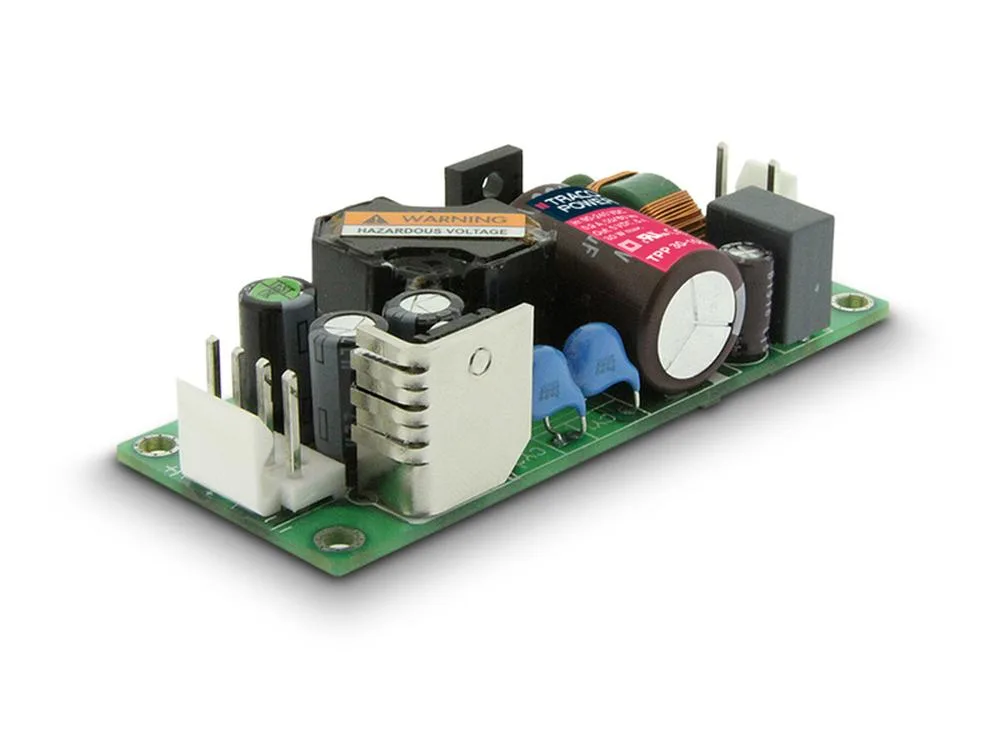

15W and 30W Open Frame AC/DC converters with extended temperature range and high isolation for medical applications from TRACO POWER
These 15W and 30W AC/DC power supplies feature a reinforced double I/O isolation system according to the latest medical safety standards IEC/EN/ES 60601-1 3rd edition for 2 x MOPP and are approved for an operating altitude of 5000 m.
The earth leakage current is below 100 ?A, which makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 91.5% offers a high power density in the packaging format 25.4×66.2mm (1.0? x 2.6?) (15 Watt) and 34.6×84.8mm (1.36? x 3.34″) (30 Watt). The full load operating temperature range covers ?40?C to +60?C, while it goes up to 85?C with 50% load derating.
The units operate in compliance with the medical EMC emission and immunity levels according to the latest standard IEC 60601-1-2 4th edition. All TRACO POWER products assigned to “Medical” category are subject to ISO 14971 ? “Application of risk management to medical devices”. The quality management for design and production is certified as per ISO 13485, while the production quality is controlled according to the acceptance criteria of IPC-A-610 class 3.
For more information about TRACO products, please do not hesitate to contact us at sales@soselectronic.com
