Arduino.cc prepares a new development boards for your application.
Arduino MKR WiFi 1010 with ESP32 IC and Arduino MKR NB 1500 which supports NB-IoT network (Vodafone, AT&T, T-Mobile USA, Telstra, Verizon).

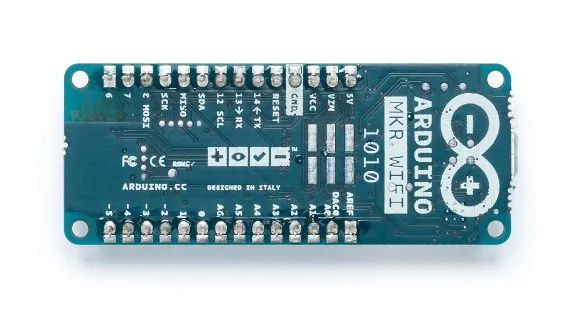

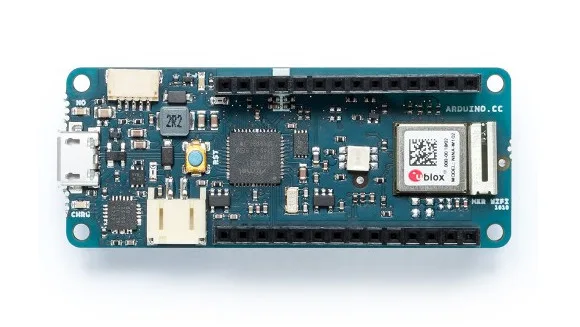

Arduino MKR WiFi 1010
The WiFi 1010 is a new version of WiFi 1000 board.
The board contains SAMD21 Cortex M0+ microcontroller, ESP32 in NINA-W10 module by u-Blox ( 2.4GHz IEEE? 802.11 b/g/n Wi-Fi).
There is crypto unit ECC608, the same like Arduino Uno WiFi Rev.2. The board supports Li-Po batery.
Board Power Supply (USB/VIN) 5V
Circuit Operating Voltage 3.3V
Digital I/O Pins 8
PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 – or 18 -, A4 -or 19)
UART 1
SPI 1
I2C 1
I2S 1
Connectivity WIFI, BLE
Analog Input Pins 7 (ADC 8/10/12 bit)
Analog Output Pins 1 (DAC 10 bit)
Flash Memory 256 KB
SRAM 32 KB
EEPROM no
Clock Speed 32.768 kHz (RTC), 48 MHz
LED_BUILTIN 6
The board is not 5V tolerant!
The dimension of board is 61.5 mm x 25 mm.

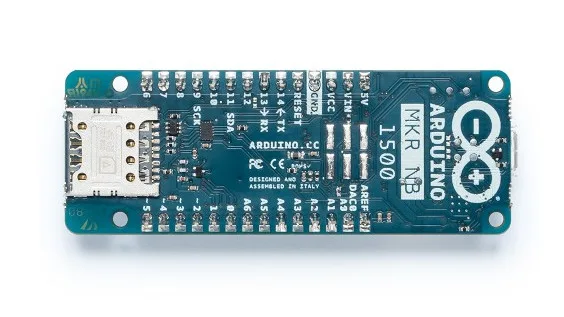

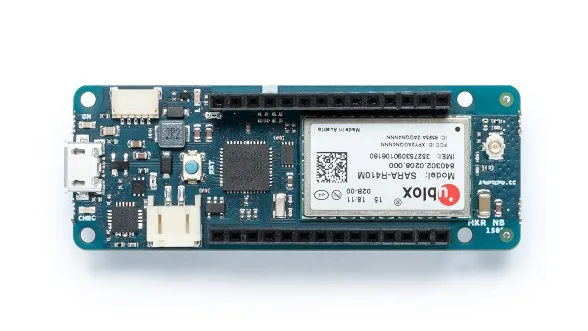

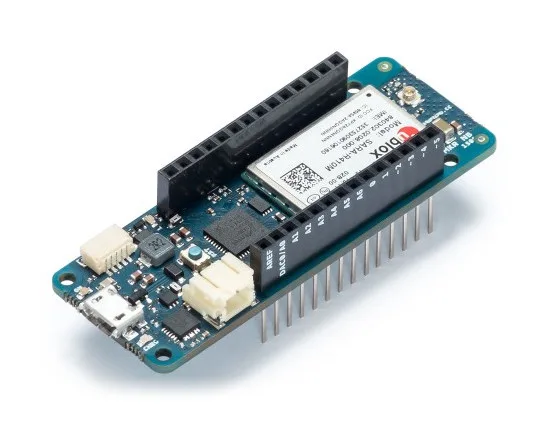

Arduino MKR NB 1500
The board supports IoT network called NB_IoT (Vodafone, AT&T, T-Mobile USA, Telstra, Verizon).
There is SAMD21 Cortex M0+ and the IoT connectivity supports SARA-R410M module by u-Blox.
The board is not 5V tolerant!
Operating Voltage 3.3 V
I2S 1
I2C 1
UART 1
SPI 1
Pinout (Digital, pwm, analog) 22 I/O Digital (12 PWM), 7 Analog input
Analog Input Pins 7 (ADC 8/10/12 bit)
Analog Output Pins 1 (DAC 10 bit)
Flash Memory 256 KB
SRAM 32 KB
EEPROM no
