PHOTO GALLERY: STM32L4 IoT development board

News2017-05-30
Author: Petr Šrámek

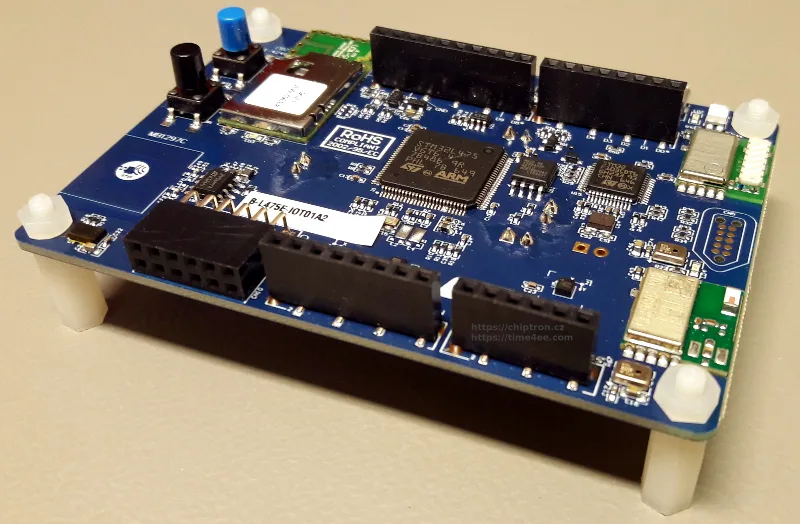

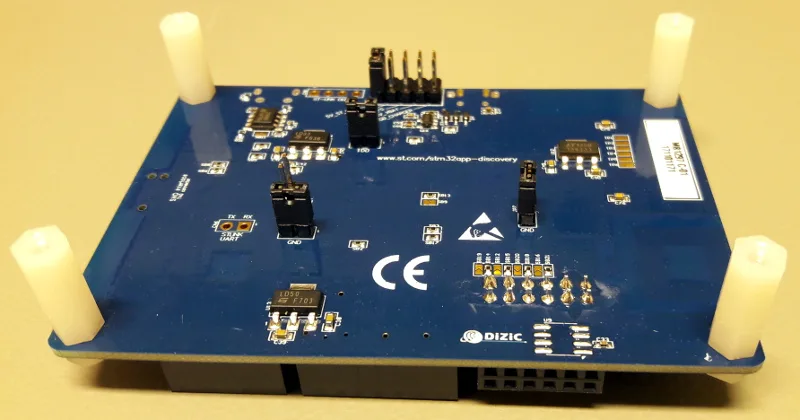

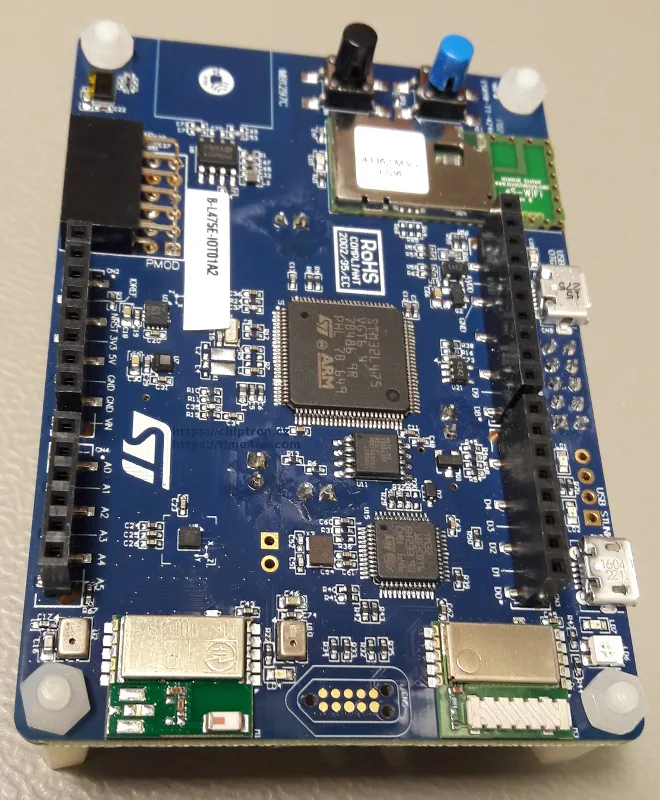

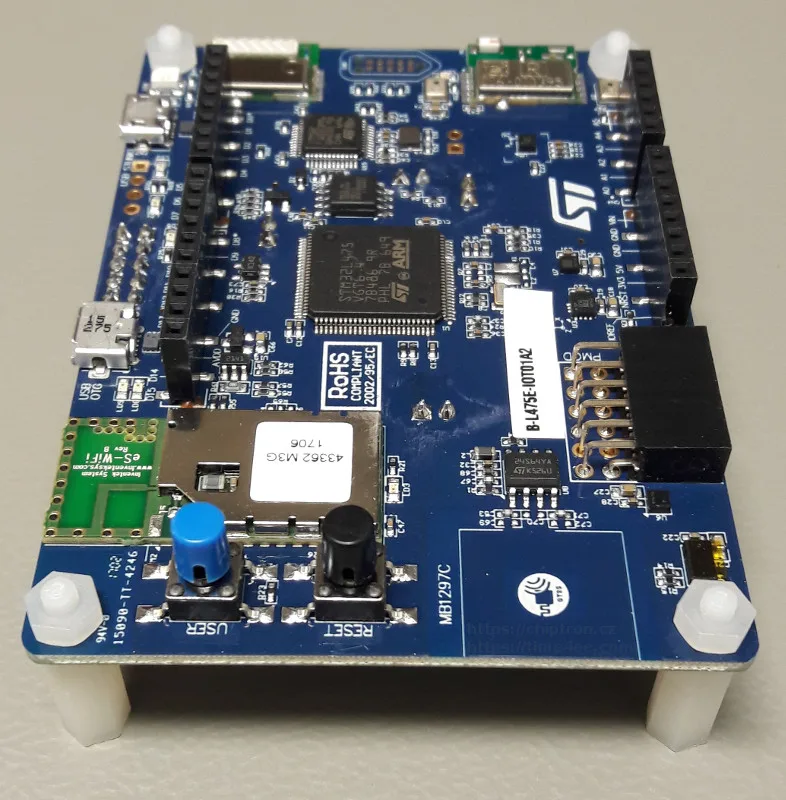

We shared a few weeks ago the news about STM32L4 IoT development board. There are pictures of the board.

The development board contains a lot of sensors and wireless technologies. Except STM32L4 microcontroller, you find these things on the board like 64-Mbit Quad-SPI,

Bluetooth 4.1 module,

Sub-GHz module SPSGRF-868 or SPSGRF-915 (868 MHz or 915 MHz),

WiFi module od Inventek ISM43362-M3G-L44 (802.11 b/g/n),

NFC chip M24SR,

omnidirectional microphones MP34DT01,

capacitive digital sensor for relative humidity and temperature HTS221,

3-axis magnetometer LIS3MDL,

3D accelerometer and 3D gyroscope LSM6DSL,

260-1260 hPa absolute digital output barometer LPS22HB,

Time-of-Flight and gesture-detection sensor VL53L0X,

2 push-buttons and UBS OTG conector.

ST’s website of B-L475E-IOT01A IoT development board
