A new member to STM32F7 family (e.g. also STM32F746 and STM32F769). STM32F723.
STM32F723 is based on ARM? Cortex?-M7 32-bit RISC core with up to 216 MHz frequency. The microcontroller includes 512 kB FLASH and 256 kB SRAM.
Clock, reset and supply management
– 1.7 V to 3.6 V application supply and I/Os
– POR, PDR, PVD and BOR
– Dedicated USB power
– 4-to-26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC (1% accuracy)
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration
– 3?12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
– 2?12-bit D/A converters
Up to 21 communication interfaces
– Up to 3? I2 C interfaces (SMBus/PMBus)
– Up to 4 USARTs/4 UARTs (27 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
– Up to 5 SPIs (up to 50 Mbit/s), 3 with muxed simplex I2 Ss for audio class accuracy via internal audio PLL or external clock
– 2 x SAIs (serial audio interface)
– 1 x CAN (2.0B active)
– 2 x SDMMCs
About the microcontroller STM32F723 http://www.st.com/content/st_com/en/products/microcontrollers/stm32-32-bit-arm-cortex-mcus/stm32f7-series/stm32f7x3/stm32f723ic.html
So, let me introduce the Discovery board.
You can see detail description of discovery board below.
The new component is STMod+ connector.
It is expanded connector for connecting of board to breadboard. You can connect very popular WiFi module ESP8266 to STM32F723.
Schematic:
On the beside side you find PMOD konektor (peripheral module).
It’s connector for connecting a lot of modules like LCD, network adapters or analog and digital converters.
The Eshop with these modules you find for example here http://store.digilentinc.com/pmod-modules/
Another info about that you find here

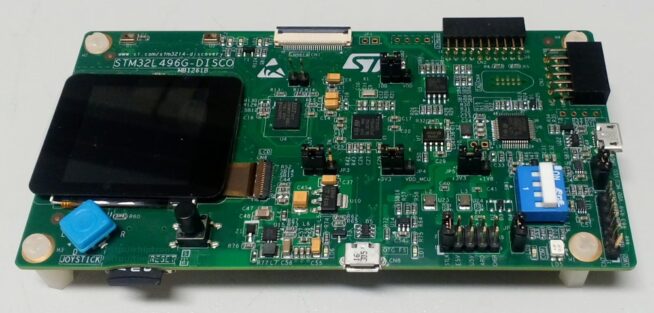

Looks, the second description of STMod+ connector is STM32L496GDISCOVERY. It means that STMicroelectronics will release development board with this STM32L469 microcontroller
https://community.st.com/thread/34763-stmod-connector
Pictures of Discovery board
