CubieBoard6 – 8GB eMMC, 2GB RAM and SATA (p?es USB 3.0)

News2017-03-24
Author: Petr Šrámek

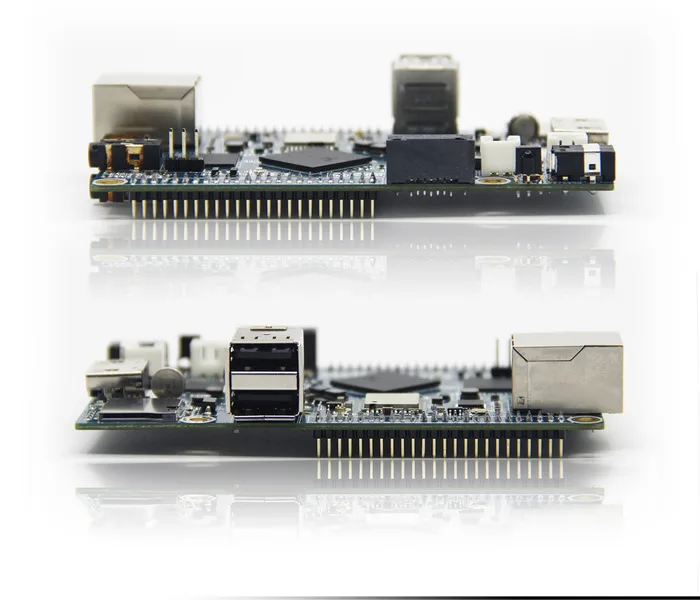

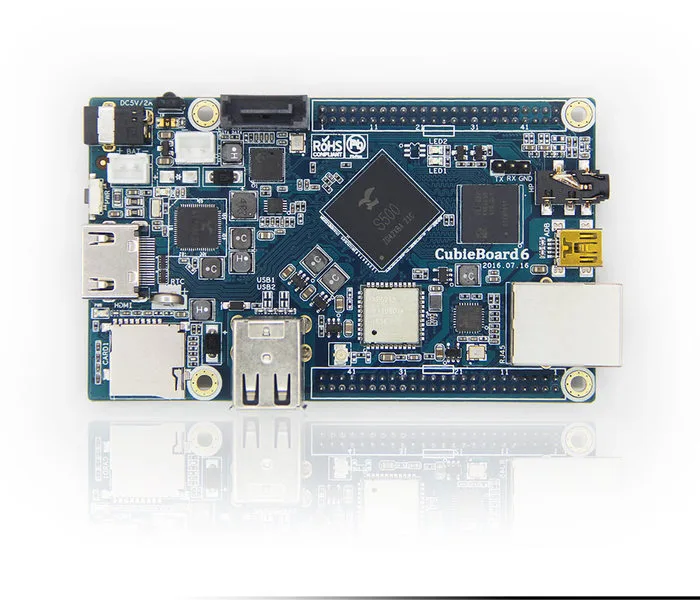

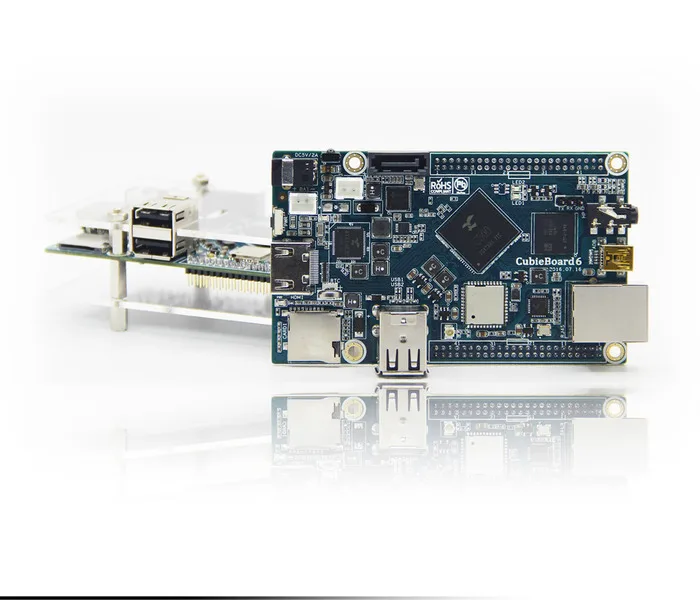

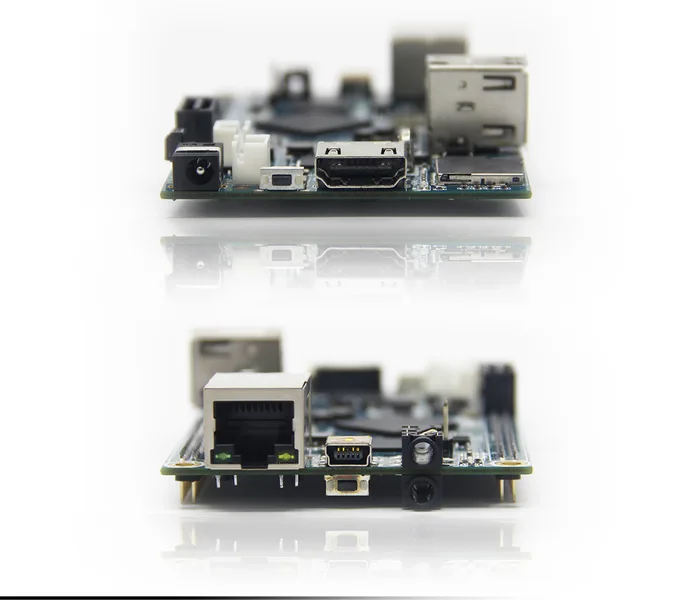

CubieTech released a new version of popular single-board computer called CubieBoard6.

What we can find on CubieBoard 6?

The processor is Actions Semi S500 (quad-core ARM Cortex A9) with GPU Imagination PowerVR SGX544. It is contains USB 3.0 interface which is used for SATA interface.

Cubieboard contains 2 GB LPDDR3 RAM.

Storage: eMMC 8 GB,

microSD kartu (a? 32GB)

SATA interface (via USB 3.0)

Cubieboard supports up to 1080p @ 60Hz.

For internet connections you can use 10/100Mbit ethernet, WiFI 802.11b/g/n and BL 4.0 – on-board u.FL antenna connector

Also you can use 2x USB 2.0 and 1x ADB USB mini (USB 3.0).

For connection of your sensors you can use 2x 48pins header. There are connected SPI, I2C, IR, CSI for camera and another.

The power supply is through USB 2.0, 2.5mm supply barrel or 2pins header for Li-Po battery.

Dimension is 100mm x 60mm x 18mm.

Product website http://www.cubietech.com/product-detail/cubieboard6/

The news shared cnx-software.com

You can buy it on amazon $98. https://www.amazon.com/CubieBoard6-development-board-S500-quad-core/dp/B06W9P8DYS
